TOP X
Combi article
black, with slotted grating, galvanised
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 256 | 2,00 | 44300 |
black, with slotted grating, stainless steel
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 256 | 1,90 | 44303 |
silver, with slotted grating, galvanised
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 256 | 1,90 | 44332 |
silver, with slotted grating, stainless steel
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 256 | 1,90 | 44333 |
black, with mesh grating MW 8/21 mm, made of PP, black
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 505 | 1,60 | 44320 |
silver, with mesh grating MW 8/21 mm, made of PP, silver
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 505 | 1,60 | 44325 |
black, with slotted cover, made of PP, black
| Length mm | Width mm | Height mm | Internal channel cross-sect. cm² | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|---|
| 1000 | 119 | 89 | 45 | 118 | 1,60 | 44335 |
Accessories
TOP X universal box as corner unit, black, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| 137 | 137 | 125 | - | 0,20 | 44360 |
TOP X universal box as corner unit, silver, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| 137 | 137 | 125 | - | 0,20 | 44365 |
Connection set for channel with end caps, adapter, black, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,10 | 44340 |
Connection set for channel with end caps, adapter, silver, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,10 | 44341 |

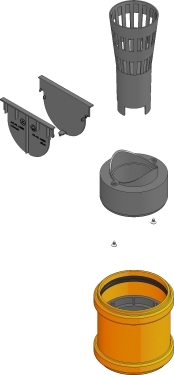

Connection set for channel with end caps, leaf trap, adapter, foul air trap, black, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,60 | 44343 |

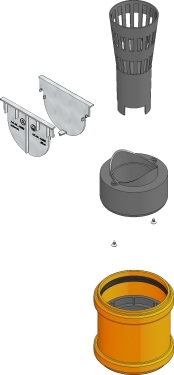

Connection set for channel with end caps, adapter, foul air trap, silver, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,50 | 44344 |

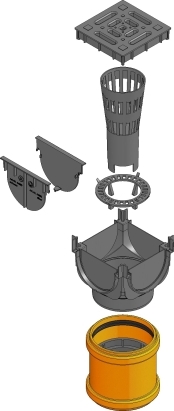

TOP X universal box, black, with connection set, end caps, leaf trap, foul air trap, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,70 | 44346 |

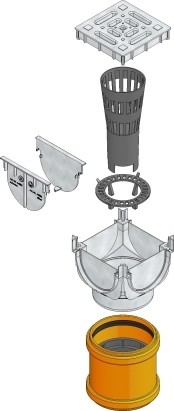

TOP X universal box, silver, with connection set, end caps, leaf trap, foul air trap, inclusive assembly instruction
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,70 | 44347 |
Foul air trap for TOP X universal box
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| - | - | - | - | 0,10 | 44349 |
TOP X access cover for slotted grating, galvanised
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. |
|---|---|---|---|---|---|
| 500 | 124 | 58 | - | 3,50 | 44390 |
