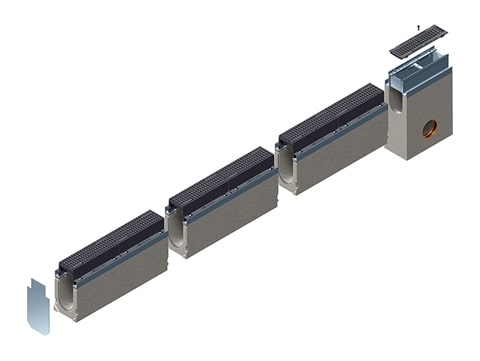

RECYFIX®TRAFFIC GUGI®BLOC 300

Combi article

RECYFIX®TRAFFIC GUGI®BLOC 300, class E 600

Type 010

Length mm	Width mm	Height mm	Internal channel cross-sect. cm²	Intake cross-sect. cm²/m	Weight kg	Item No.
1000	420	494	1055	1046	53,10	40942

Trash boxes

Trash box complete with ductile iron grating SW 3x140/20 mm, class E 600

Length mm	Width mm	Height mm	Weight kg	Item No.
511	590	1114	101,00	16500

End caps

End cap closed, galvanised, type 010

Length mm	Width mm	Height mm	Weight kg	Item No.
-	373	494	2,70	40982

End cap with horizontal PVC-U pipe outlet DN/OD 200, type 010

Length mm	Width mm	Height mm	Weight kg	Item No.
-	373	494	3,50	40992

Connection plate, galvanised, Trash box RECYFIX TRAFFIC GUGIBLOC 300

Length mm	Width mm	Height mm	Weight kg	Item No.
-	453	372	2,60	40984

Further accessories

RECYFIX sealing material, 290 ml**

Length mm	Width mm	Height mm	Weight kg	Item No.
-	-	-	0,50	19053

RECYFIX primer, 250 ml

Length mm	Width mm	Height mm	Weight kg	Item No.
-	-	-	0,50	19054
